Automatic Dumping Roller AGV Conveyor/piggyback dump drum AGV/Automated Guided Vehicles/Customized Automatic Food Packing Roller AGV Conveyors Machine/Mobile Roller Convey Trolley

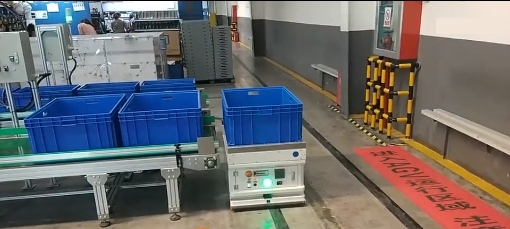

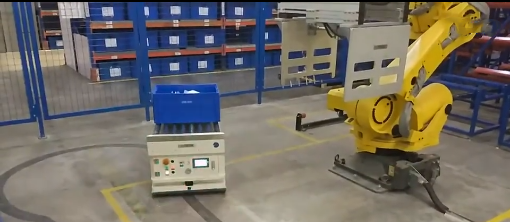

The piggyback dump drum AGV is used by docking with the power connection platform to form a fully automatic unmanned handling system. The system has a wide range of applications, low cost and easy expansion, and is mostly used for moving back and forth between points and points.

Parameters and specifications of the dump drum AGV:

Dimensions L900*W900*H400(mm)
Mode of Travel: Magnetic stripe guidance/inertia/magnetic nails/laser guidance (optional)
Direction of travel: Forward and backward, turn left and right, and fork
Communication function: Wi-Fi (optional)
Drive mode: Differential drive
Driver power supply DC24V
Towing capacity 50, 100, 200, 300, 500, 750kg (customizable)
Main body model with roller type
Running speed 0-45m/min speed (or customized)
Turning radius min. 300 mm (tape route radius)
Navigation accuracy ±10mm
Working mode 24 hours
Climbing ability: 3-5 degrees
Stopping accuracy ±10mm
Charging method: Manual charging (optional automatic charging)
The safety sensing range is ±3m, adjustable, and the emergency braking distance is less than 20mm
Alarm form: sound and light alarm
Battery: Maintenance-free rechargeable battery, continuous discharge > 500 times
Safety protection: Laser obstacle detection sensor, mechanical anti-collision mechanism, double protection
Design life > 10 years

Performance characteristics:
1.The AGV carrier can drive along the specified guidance path,or use the electromagnetic track to set up its travel route,and the electromagnetic track is glued to the floor;
2.AGV carriers are suitable for medium and long-distance transportation occasions,and the frequency of use is not limited,but it cannot be used in flammable,explosive,waterlogged,dusty,and iron filings.
Applications:automobile production,shipbuilding,die stamping,mining transportation,steel blending,transportation and assembly of large machinery and equipment,etc.
